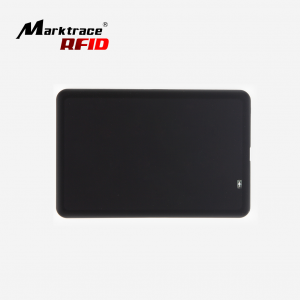

RFID UHF USB Desktop Reader

Product overview

• Our own designing desktop reader MR6061U is built-in antenna and a Type of small size desktop read & write device, it can read & write many Different kinds of UHF tags, maximum reading range about 10cm. Full compatible with EPC Gen 2 and ISO180006B Protocol Compact size, read & write capability Connect PC via USB port, draw power from PC USB Function of “write with password”

Product parameters

• Model MR6061U
• Support Protocol EPC Gen 2(ISO18000-6C) ISO18000-6B
• Working Frequency ISM902~928MHz ISM865~868MHz
• Working Mode FHSS
• RF Power 10dBm
• Reading Speed Software programmable, Single card averagereading each 64Bits less than 10ms
• Data Interface USB
• Read Method Command Mode, application software Command control write card
• Reading Range ≤10cm circular polarization antenna
• Reading Indication Buzzer, LED
• Antenna Built in small circular polarization antenna
• Power Adapter PC USB Power Supply
• Dimension 104*68*10mm
• Operation Temp. -10℃~+60℃
• Storage Temp. -15℃~+65℃
• Weight 0.1KG
