U H F Long Range Integrated Reader

CONTACT US

PROJECT DETAILS

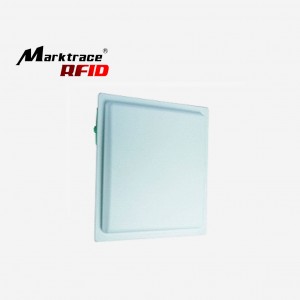

Product Name: UHF Long Range Integrated Reader
Product Model: MR6111E
Product Category: UHF RFID READER
MR6111E

Product overview

  • 1 Introduction MR6111E UHF RFID reader base on new generation reader technology platform development, combine UHF RFID advanced technology and many years reader application base experience. This reader is more stable and can use in various applications.
  • 2 Protocol<ISO/IEC18000-6 TYPE B> <800/900MHz RFID Technology application implementation regulations>
  • 3 ParameterItem: Parameter

Product parameters

  • Frequency: US(902~928MHz), China(920~925MHz), EU(865~867MHz), other frequency selectable
  • Protocol: ISO18000-6B/6C, EPC G2
  • RF Power: 0~31dBm adjustable
  • Sensitivity: -80dBm(12dBi antenna more than 12 m)
  • Read Speed: Multi tag 200pcs/second, single tag 2000 times/minute
  • Processor: ARM CORTEX M3 100M CPU
  • Memory: 16KB tag data memory and 32KB ferroelectric memory
  • Data Interface: 100M Ethernet interface RS232/RS485 interface Wiegand 26/34 One team input and one team output(TTL),one team Relay
  • Power Supply: DC+9V~+15V
  • Working Temp.: -20~60℃
