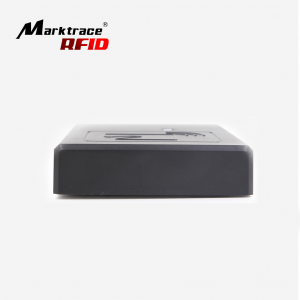

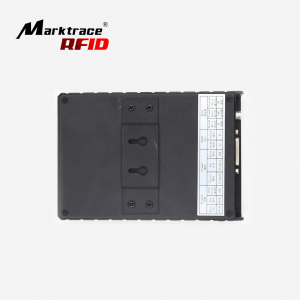

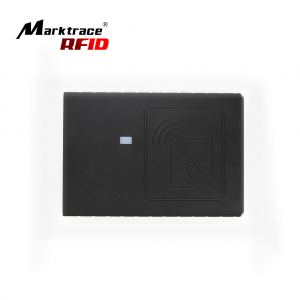

UHF Desktop Reader MR6161E



Product Name: UHF Desktop Reader
Product Model: MR6161E
Product Category: RFID UHF Reader

Product overview

  • 1 Introduction MR6161E UHF RFID Reader base on new generation reader technology platform development combine UHF RFID advanced technology and many years reader application base experienceThis reader Is more stable and can use in various applications
  • 2 Protocol <ISO/IEC18000-6 TYPE B> <800/900MHz RFID Technology application implementation regulations>
  • Functional Description
  • 3.1 EPC G2 Tag operation function Reader Support EPC G2 tag: Multi tag query, read, write, selection, Single tag read, write, lock, kill
  • 3.2 ISO18000-6B Tag operation function Reader support ISO18000-6B Tag: Multi tag query, Single tag read, write, lock, query the lock
  • 3.3 Working Parameter Setting User can set the parameter of interface, IP address, Jump Frequency point, output power, reading indication, working mode etc; When in Timing or Trigger mode, can set the parameter of read Card type, read area, address, length, output method, output interface
  • 3.4 Communication Function Support Ethernet, RS232 and RS485 both-way communication interfaceprotocol compliant toUHF RFIDreader and PC communication protocol V2.0》;Also reader support weigand single way data transmission interface format compliant to Wiegand 26 and Wigand 34 interface protocol
  • 3.5 Off-line working mode Support timing read or trigger read working modeall tags in query area can be read according to set address and lengthread data direct output or buffer. Read data can selected for filtering same tag. Output data interface can be any one of interface or multiple interface meanwhile can configure relay Data buffer have power-off function preserves.
  • 3.6 Maintain and update functions Support web network server function, can set working parameter on Web page, reader also support Serial port and RJ45 port upgrade in the application firmware

Product parameters

  • Item: Parameter
  • Frequency:US(902~928MHz), China(920~925MHz),EU(865~867MHz), other frequency selectable
  • Protocol:ISO18000-6B/6C,EPC G2
  • RF power:0~31dBm adjustable
  • Sensitivity:-80dBm(3dBi antenna more than 3 m)
  • Read speed:Multi tag-200pcs/second, single tag 2000 times/minute
  • Processor:ARM CORTEX M3 100M CPU
  • Memory:16KB tag data memory and 32KB Ferroelectric memory

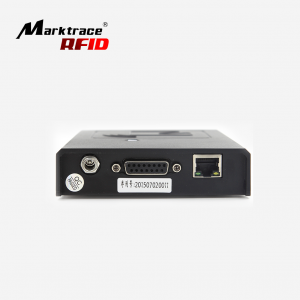

  • Data Interface:100M Ethernet Interface RS232/RS485 interface wiegand 26/34 One team input and one team output(TTL),one team Relay
  • Power Supply:DC+9V~+15V
  • Working Temp.:-20~60℃
