PROJECT DETAILS

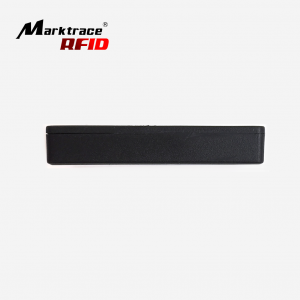

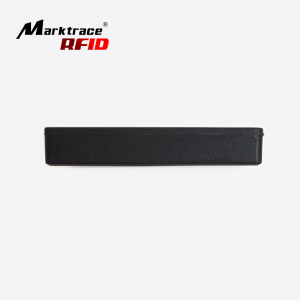

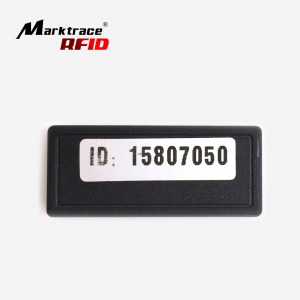

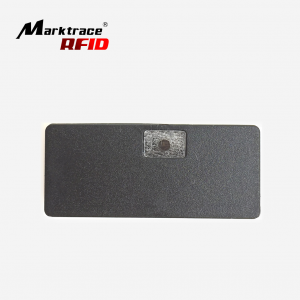

| Product name: | RFID 2.4G Active Assets Management Tag MR3848 |
|---|---|
| Product model: | MR3848 |
| Product category： | 2.4G ACTIVE TAG |
Product overview
- Ultra-low-power, average working current <10uA. Photosensitive tamper integration. 2.4G identify range can reach 80 meters, reading range adjustable via software.
Product parameters
- Model No MR3848
- Type 2.4G Card Type (Beacon type, MAX RF power)
- Inductive mode Initiative transmit, RF Power-0dBm transmit every second
- Material ABS, heat resistant ,Black Color
- Dimension 42*18.2*7.3mm (without 3M) 3M layer thickness is 1.55mm
- Battery Battery life 3 years (signal time interval is 3s)
- IP Grade IP54
- Microwave Link Characteristic： Electrical Characteristic:
- Signal Modulation Mode: GFSK
- Quiescent Current: <3uACommunication Speed: 1Mbit/s
- Peak Current: <15mA
- Operating Frequency: 2.44GHz
- Average Current :<10uA
- Output power: 0dbm
- Battery mode: CR1632
- Battery Capacity:120mA×2
- Operating Temp: -20℃~+45℃
- Storage Temp: -30℃~65℃
