PROJECT DETAILS

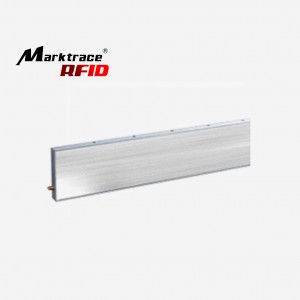

| Product Name： | 902-928MHz 5dBi Panel Directional Antenna |
|---|---|
| Product Model： | MR6525 |
| Product Category： | UHF RFID ANTENNA |
Product parameters
- Model MR6525
- Electrical specifications
- Frequency range (MHz) 902-928
- Polarization
- CircularGain(dBi) 5
- Half-power beam width(°) Hor:60 Ver:72
- Front-to-back ratio(dB) ≥20
- Impedance(Ω) 50
- VSWR ≤1.4
- Maximum input power(W) 100
- Lightning protection DC Ground
- Mechanical specifications
- Connector SMA-female
- Connector position Bottom
- Size(mm) 460×90×20
- Packing siz(mm)480×100×30
- Antenna weight(kg) 0.2
- Packing weight(kg) 0.35
- Wind loading area(㎡) ≤0.2
- Rated wind velocity(m/s) 36.9
- Reflector material Aluminum
- Radome material ABS
- Radome color White
- Operating temperature(℃) -40～55
